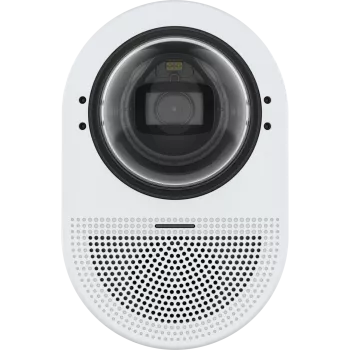

Axis Q9307-LV
Axis Q9307-LV
- Max Resolution
- 2592x1944
- FOV
- H: 104°-40°
V: 74°-29°
- PoE
- Class 4
- Max Power Draw
- 25.5 W
- Features
- - Built-in Microphone
- - Built-in Speaker
Removing the Dome

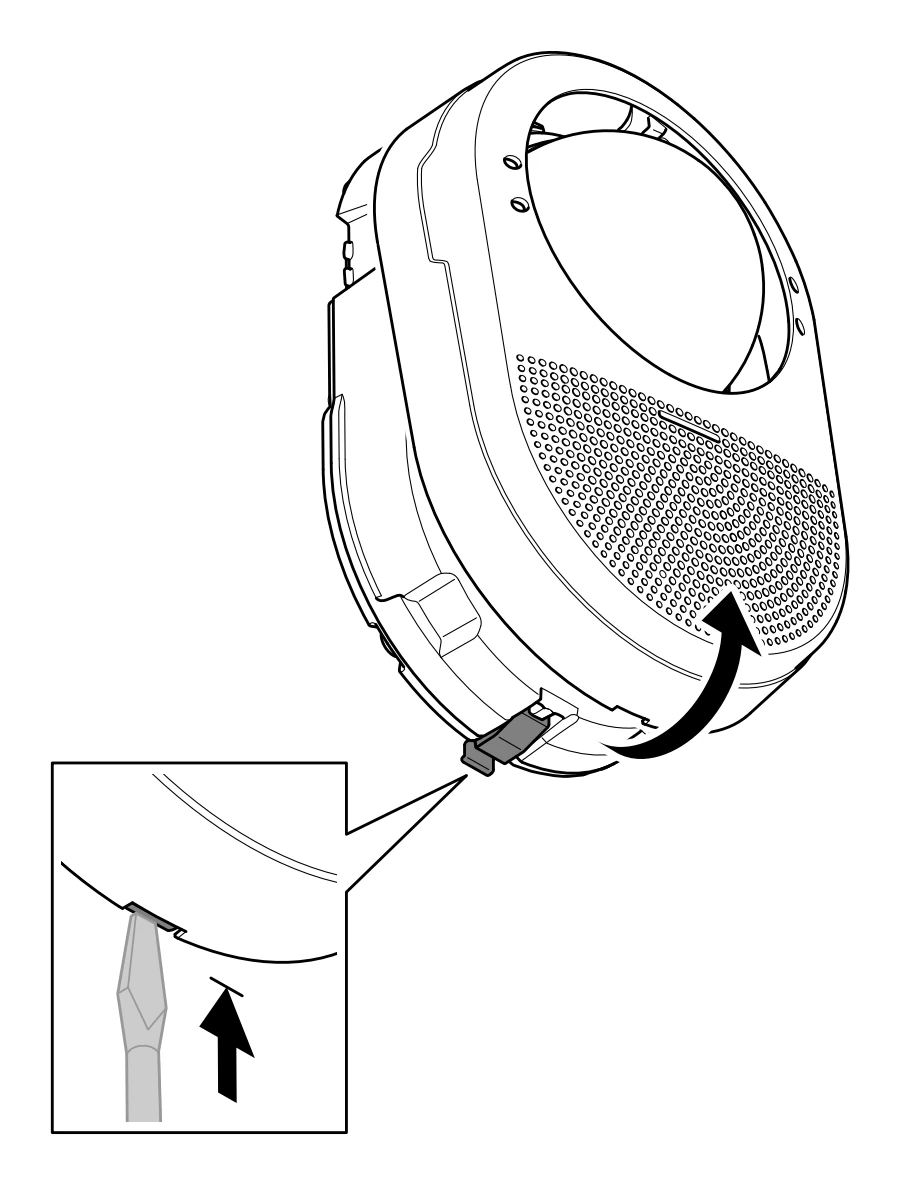

1. To remove the dome, first remove the housing by unlatching the bottom with a flathead screwdriver.

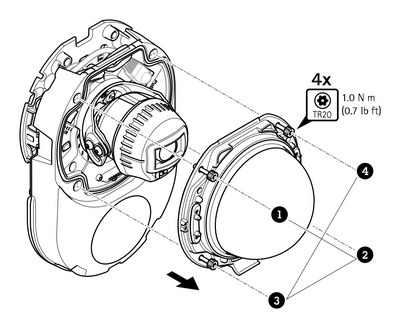

2. Once complete, the dome will be ready to be removed
🖼️.
- To remove the dome, you will need a TR20 screwdriver.
🕮
The Axis installation guide can be found here.
